Wireshark Packet Capture Lab

Project Overview

This project demonstrates network traffic capture and analysis using Wireshark. We captured packets from multiple intentionally vulnerable web applications running inside Docker containers. The objective was to simulate real-world insecure traffic, analyze the data, and identify sensitive information leaks.

---

Lab Setup

• Environment:

  • Kali Linux VM (Ethical Hacker version from Cisco Networking Academy)
  • Docker containers:
    • DVWA (Damn Vulnerable Web App)
    • OWASP Juice Shop
    • WebGoat
    • Mutillidae

• Tools Used:

  • Wireshark
  • Firefox browser
  • Docker CLI

---

Capture Files

File	Description
dvwa-capture-4-2-25.pcapng	DVWA website interaction capture
juice-shop-capture.pcapng	Juice Shop interaction capture
webgoat-capture.pcapng	WebGoat interaction capture
login-dvwa.pcapng	Specific login attempt capture for DVWA

All .pcapng files are available in this repository.

---

Analysis Walkthrough

Follow these steps to analyze the captured packets:

1. Open Capture Files

• Launch Wireshark.
• Open a .pcapng file.

2. Use Helpful Filters

http
http.request.method == "POST"
frame contains "password"
frame contains "admin"
frame contains "juice"
tcp.port == 80

3. Analyze HTTP Traffic

• Look for cleartext login forms.
• Follow HTTP streams to reconstruct conversations.
• Identify hints or exposed credentials.

4. Visualize Traffic

• Use Statistics → Protocol Hierarchy to see protocol distribution.
• Use Statistics → Conversations to view active sessions.

5. Screenshot Key Findings

• Capture images of login credentials in traffic.
• Highlight sensitive data leaks or hints (especially from Juice Shop reviews).

---

Notable Findings

Application	Finding
DVWA	Username/password transmitted without encryption
Juice Shop	Usernames hidden inside customer reviews (potential attack vector)
WebGoat	Insecure login lessons demonstrated over HTTP

Mutillidae was unavailable due to database errors during capture.

---

Screenshots

Screenshots are stored in the screenshots/ folder:

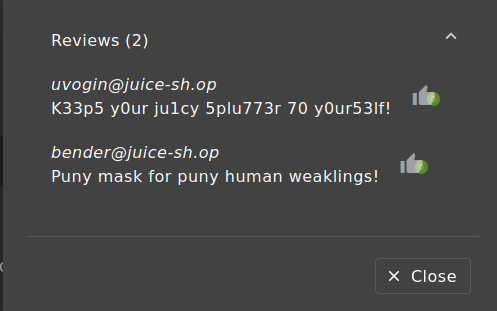

- Juice Shop customer review containing hidden information

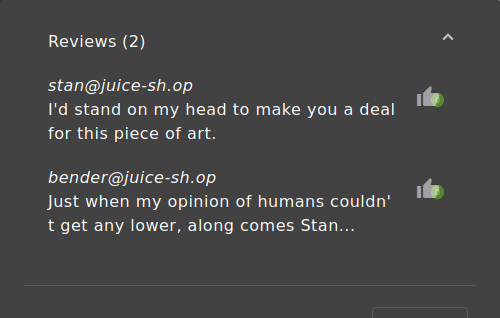

- Additional Juice Shop findings

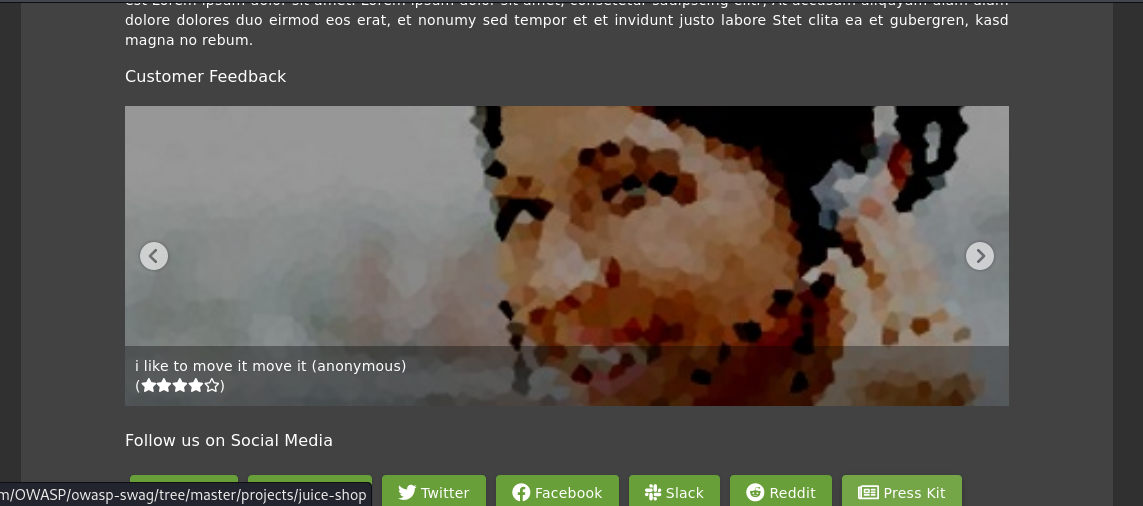

- Key finding/hint discovered during analysis

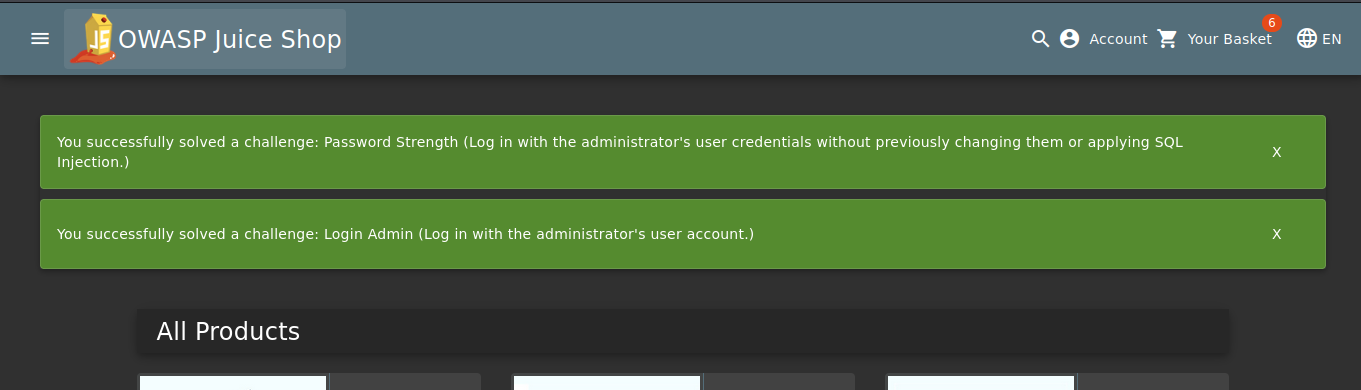

- Solution or key discovery from packet analysis

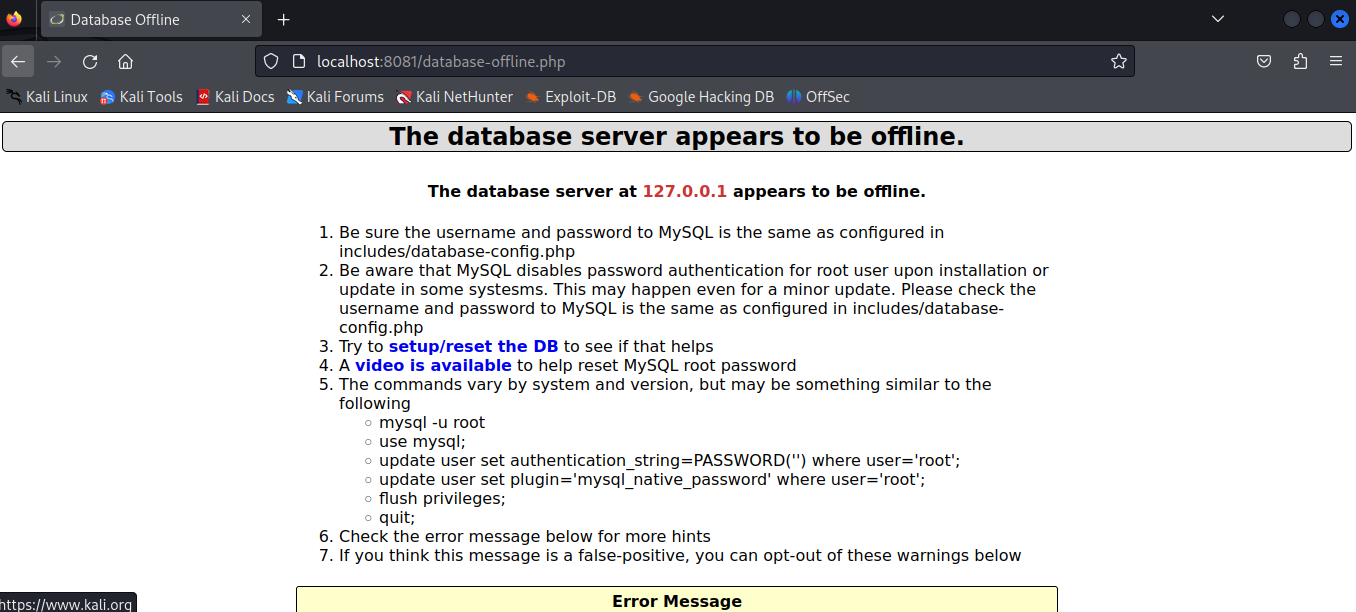

- Mutillidae application unavailable during capture (database errors)

---

Lessons Learned

• HTTP traffic is easily sniffed without HTTPS.
• Vulnerable apps can leak useful information passively.
• Tools like Wireshark are essential for analyzing insecure communications.

---

Future Improvements

• Capture HTTPS traffic using SSL/TLS decryption.
• Simulate MiTM (Man-in-the-Middle) attacks.
• Add advanced analysis: TCP flags, session reconstruction, etc.

---

Credits

• Cisco Networking Academy — Ethical Hacker VM.
• OWASP — Juice Shop and WebGoat projects.
• Wireshark Foundation.

---

🎉 Project Complete!

"You can't protect what you can't see." 🛡️
